This PIC Programmer was designed byJens Madsen. If you require more information try theguestbookfor the PIC Programmer.
This PIC Programmer is able to program: PIC12C5XX, 12C67X, 24CXX, 16C55X, 16C61, 16C62X, 16C71, 16C71X, 16C8X, 16F8X, ISO-CARD's with ASF and other serial programmable Chips by adapter.

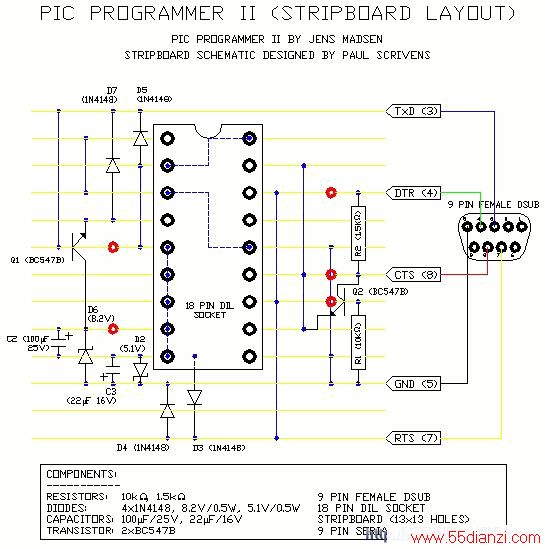

The PIC Programmer CAN connect to a 25/9 PIN serial port, use theserial pin-out tablesto determine the correct pins to use when wiring. The schematic above assumes you are using a 9 pin female connector (to connect to an ATX motherboards).
SOFtware
There are probably several applications available for the PIC Programmer II, but the two most popular, I beleive, are:
PP2 utility, byMaLTE Kiesel(a DOS based program)
IC-Prog Programmer, byBonny Gijzen(Windows based program)
For more software (including PIC16C84 utilities) check outJens' website
