飞思卡尔公司的MC13192是IEEE® 802.15.4 标准兼容的2.4GHz 低功耗收发器。MC13192收发器包括用于IEEE® 802.15.4标准的完整的802.15.4物理层（PHY）调制解调器，该标准支持对等，星形和网状网络以及低噪音放大器，正常输出功率1mW的功率放大器以及集成了压控振荡器（VCO）的PLL，电源转换与所有的扩展频谱的编码和解码功能。MC13192支持250 kbps的O-QPSK，和合适的MCU如MC9S08GT60组合，可以提供低成本的短距离的数据连接和网络。本文介绍MC13192的主要性能，方框图以及采用MC13192 和MC9S08GT60 组合的SED参考设计电路图。
MC13192 2.4 GHz Low Power Transceiver for the IEEE® 802.15.4 Standard
The MC13192 is a short range, low power, 2.4 GHz Industrial, Scientific, and Medical (ISM) band transceivers. The MC13192 contains a complete 802.15.4 physical layer (PHY) modem designed for the IEEE 802.15.4 Standard which supports peer-to-peer,
star, and mesh networking.
The MC13192 includes the 802.15.4 PHY/MAC for use with the HCS08 Family of MCUs. The MC13192 can be used with Freescale’s IEEE 802.15.4 MAC and BeeStack, which is Freescale’s ZigBee 2006 compliant protocol stack.
When combined with an appropriate microcontroller (MCU), the MC13192 provide a cost-effective solution for short-range data links and networks. Interface with the MCU is accomplished using a four wire serial peripheral interface (SPI) connection and an interrupt request output which allows for the use of a variety of processors. The software and processor can be scaled to fit applications ranging from simple point-to-point systems, through complete ZigBee
networking.
The transceiver includes a low noise amplifier, 1.0 mW power amplifier (PA), PLL with internal voltage controlled oscillator (VCO), on-board power supply regulation, and full spread-spectrum encoding and decoding. The device supports 250 kbps Offset-Quadrature Phase Shift Keying (O-QPSK) data in 2.0 MHz channels with 5.0 MHz channel spacing per the 802.15.4 Standard. The SPI port and interrupt request output are used for receive (RX) and transmit (TX) data transfer and control.
主要特性：
Supports 250 kbps O-QPSK data in 5.0 MHz channels and full spread-spectrum encode and decode (compatible with the 802.15.4 Standard)
Operates on one of 16 selectable channels in the 2.4 GHz band
RX sensitivity of <-92 dBm (typical) at 1.0% packet error rate
0 dBm nominal, programmable from -27 dBm to 4 dBm typical maximum output power
Recommended power supply range: 2.0 to 3.4 V
Buffered transmit and receive data packets for simplified use with low cost MCUs
Three power down modes for power conservation:
— < 1 μA Off current
— 1 μA Typical Hibernate current
— 35 μA Typical Doze current (no CLKO)
Four internal timer comparators available to supplement MCU resource
Programmable frequency clock output (CLKO) for use by MCU
Onboard trim capability for 16 MHz crystal reference oscillator eliminates need for external variable capacitors and allows for automated production frequency calibration.
Seven general purpose input/output (GPIO) signals
Operating temperature range: -40 °C to 85 °C
Small form factor QFN-32 Package

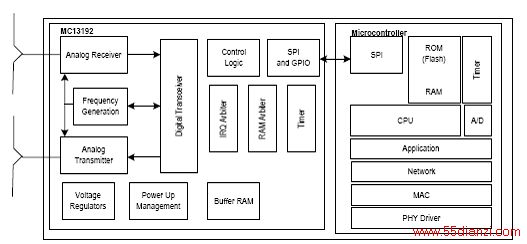

图1.MC13192 简化方框图

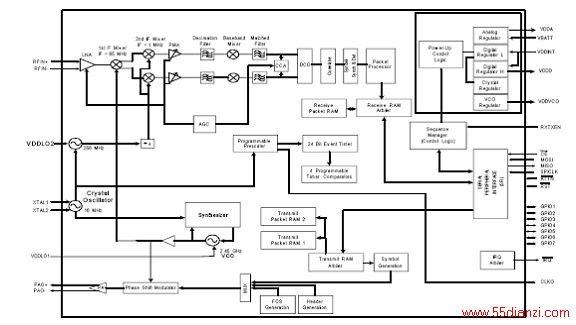

图2.ZigBee系统级方框图
图3.MC13192和MC9S08GT60 SARD参考设计电路图
