Intersil H55185 VoIP Ringing SLI方案

点击数：7819 次录入时间：03-04 12:03:21 整理：http://www.55dianzi.com 电工文摘

Intersil 公司的HC55185是网上电话( VoIP)铃音用户接口电路( Ringing SLIC),支持中短回路长度的模拟POTS的无线和有线应用. RSLIC-VoIP系列工作到100V电压,用户线长度可扩展到500欧姆(即5000英尺)或更长.其它特性还包括低功耗,振铃信号采用正弦或梯形波,自动检测机制等. VoIP Ringing SLIC系列主要用在网络电话(VoIP),线缆调制解调器,DSL语音,短回路接入平台,遥控用户线单元以及终端适配器.本文介绍了HC55185的主要特性, 方框图, 基本应用电路图和所用元件列表,以及HC5518XEVAL 评估板的方框图,电路图和评估板元件列表.

The RSLIC-VoIP family of ringing subscriber line interface circuits (RSLIC) supports analog Plain Old Telephone Service (POTS) in short and medium loop length, wireless and wireline applications. Ideally suited for remote subscriber units, this family of products offers flexibility to designers with high ringing voltage and low power consumption system
requirements.

The RSLIC-VoIP family operates to 100V which translates directly to the amount of ringing voltage supplied to the end subscriber. With the high operating voltage, subscriber loop
lengths can be extended to 500Ω (i.e., 5,000 feet) and beyond.
Other key features across the product family include: low power consumption, ringing using sinusoidal or trapezoidal waveforms, robust auto-detection mechanisms for when
subscribers go on or off hook, and minimal external discrete application components. Integrated test access features are also offered on selected products to support loopback
testing as well as line measurement tests.

There are five product offerings of the HC55185 with each version providing voltage grades of high battery voltage and longitudinal balance. The voltage feed amplifier design uses low fixed loop gains to achieve high analog performance with low susceptibility to system induced noise.

HC55185主要特性:
Onboard Ringing Generation
Compatible with Existing HC5518x Devices
Low Standby Power Consumption (75V, 65mW)
Reduced Idle Channel Noise
Programmable Transient Current Limit
Improved Off Hook Software Interface
Integrated MTU DC Characteristics
Low External Component Count
Silent Polarity Reversal
Pulse Metering and On Hook Transmission
Tip Open Ground Start Operation
Balanced and Unbalanced Ringing
Thermal Shutdown with Alarm Indicator
28 Lead Surface Mount Packaging
Reduced Footprint Micro Leadframe Packaging
Dielectric Isolated (DI) High Voltage Design
QFN Package Option
Compliant to JEDEC PUB95 MO-220 QFN - Quad Flat No Leads - Product Outline
Near Chip Scale Package Footprint; Improves PCB efficiency and has a thinner profile
Pb-free plus anneal available (RoHS compliant)

HC55185应用:
Voice Over Internet Protocol (VoIP)
Cable Modems
Voice Over DSL (VoDSL)
Short Loop Access Platforms
Remote Subscriber Units
Terminal Adapters

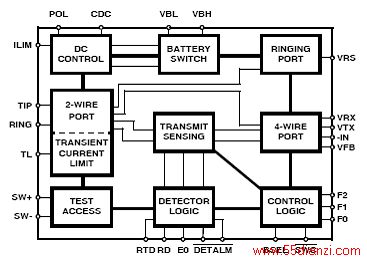

图1.HC55185方框图

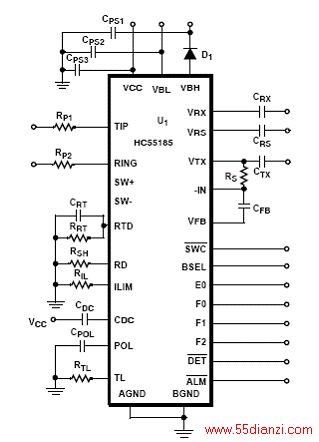

图2.HC55185基本应用电路

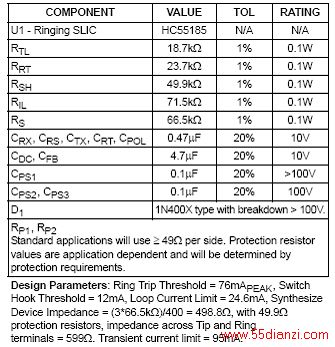

基本应用电路所用元件列表:

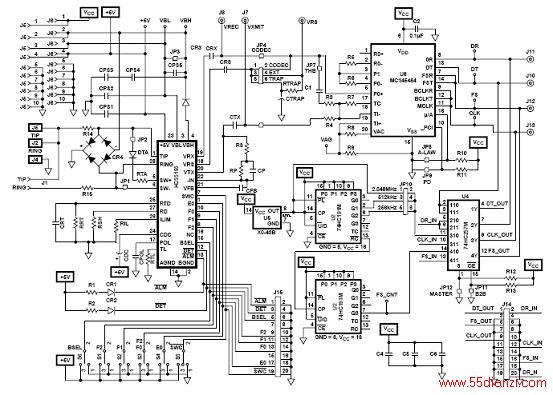

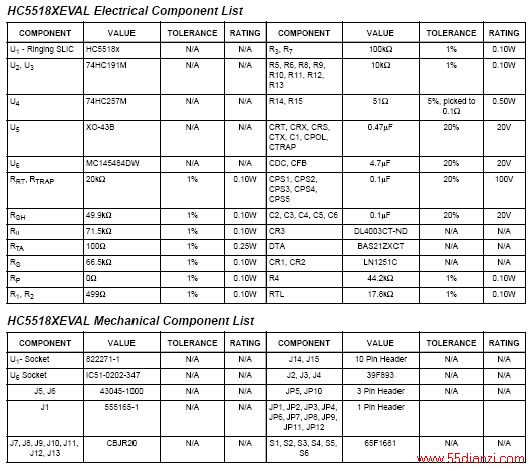

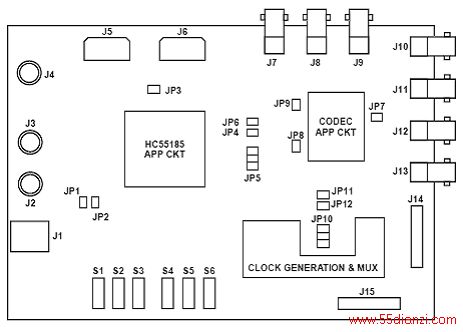

HC5518XEVAL 评估板
The HC5518XEVAL evaluation board provides a complete evaluation system for the HC55185 family of ringing SLICs. The evaluation board design consists of the HC55185 device application circuit, a single +5V CODEC for line circuit evaluations and on board logic for stand alone operation. The evaluation boards have been designed to support back to back operation, providing further insight to the complete signal path and solution.

The transient behavior of the SLIC in response to mode changes has been significantly improved with the HC55185 design. The benefit to the application is reduction or more
likely elimination of DET glitches when off hook events occur. In addition to internal circuit modifications, the change of the CFB value contributes to this functional improvement.
Please reference the HC55185 data sheet for detailed information regarding this feature.

Voltage ratings for external components have been selected based on 100V device operation, therefore compatibility to lower voltage versions is guaranteed.
