Intersil ISL34340 SERDES数据方案

点击数：7327 次录入时间：03-04 12:02:19 整理：http://www.55dianzi.com 电子技术

Intersil公司的ISL34340是LVCMOS并行视频数据的串并/并串转换器(SERDES),能在单一差分对上传输24位RGB信号.它把传输到并行LVCMOS总线并串转换器上的视频数据转换成串行高速差分信号,而这种差分信号又通过串并转换器在远端转换成并行视频信号. ISL34340广泛应用在导航和显示系统,视频娱乐系统,工业计算终端以及遥控照相机.本文介绍了ISL34340的主要特性,方框图以及系统应用方框图和ISL34340评估板的特性和详细的电路图.
The ISL34340 is a serializer/deserializer of LVCMOS parallel video data. The video data presented to the serializer on the parallel LVCMOS bus is serialized into a high-speed differential signal. This differential signal is converted back to parallel video at the remote end by the deserializer. It also transports auxiliary data bidirectionally over the same link during the video vertical retrace interval.
主要特性:
24-bit RGB transport over single differential pair
Bidirectional auxiliary data transport without extra bandwidth and over the same differential pair
40MHz PCLK transports
- SVGA 800 x 600 70fps, 16% blanking
- WSVGA 1024 x 600 60fps, 8% blanking
Internal 100Ω termination on high-speed serial lines
DC balanced 8b/10b line code allows AC-coupling
- Provides immunity against ground shifts
Transmitter amplitude boost and pre-emphasis and receiver equalization allow for longer cable lengths and higher data rates
Same device for serializer and deserializer simplifies inventory
I2C interface
High-speed serial lines meet 8kV ESD rating
应用:
Navigation and display systems
Video entertainment systems
Industrial computing terminals
Remote cameras

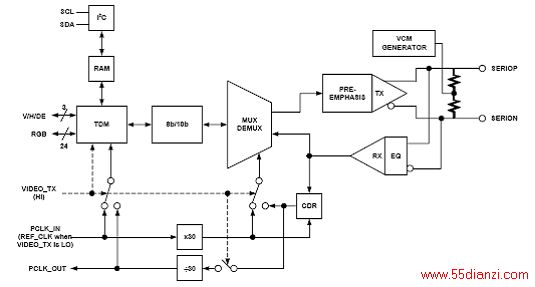

图1. ISL34340方框图

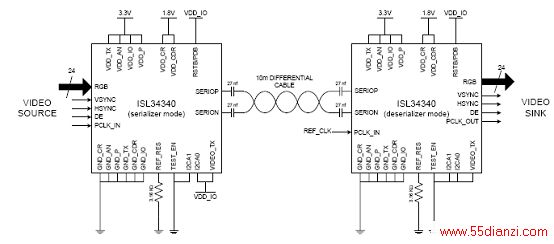

图2. ISL34340应用方框图

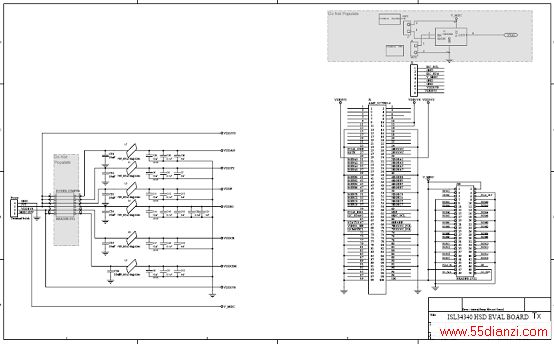

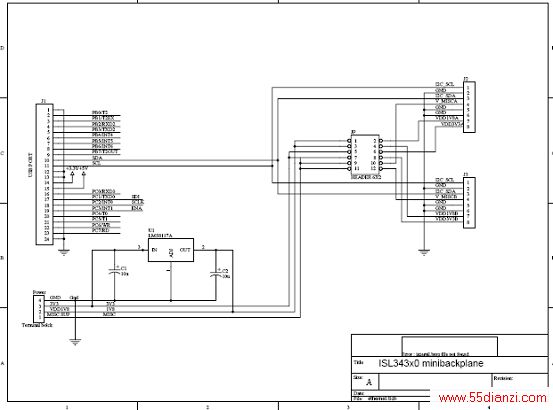

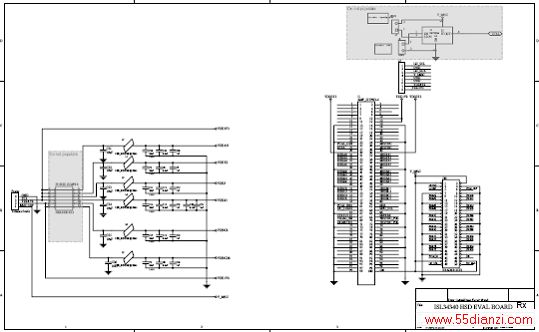

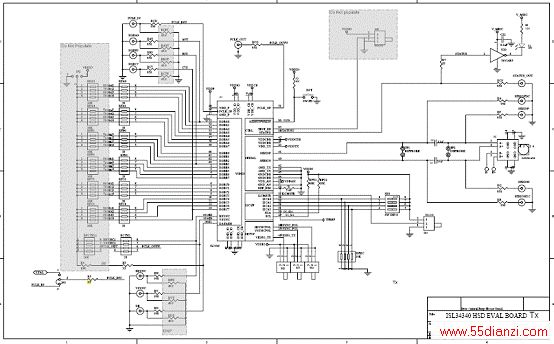

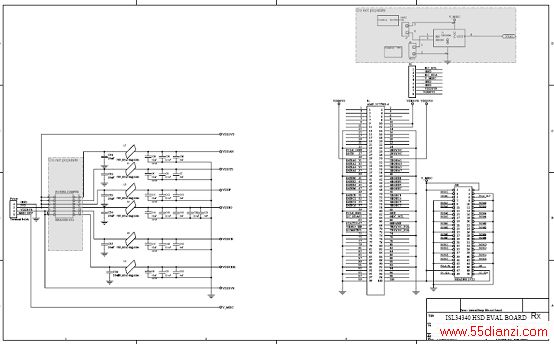

The ISL34340 evaluation kit enables the user to exercise the serdes in a lab environment and to see the high speed and parallel signals conveniently on an oscilloscope.
