NXP TDA1517ATW 8W BTL音频功率放大方案
NXP TDA1517ATW 8W BTL音频功率放大方案
点击数：7482 次 录入时间：03-04 11:43:15 整理：http://www.55dianzi.com 电工文摘
NXP 公司的TDA1517ATW是 8W BTL或2 × 4 W SE音频功率放大器，在HTSSOP20封装内集成了AB类输出放大器，可用作单声道桥接负载（BTL）或立体声单端（SE）连接，具有良好的波纹抑制以及AC和DC短路安全。本文介绍了TDA1517ATW主要特性，方框图以及BTL和SE连接应用框图。
TDA1517ATW：8 W BTL or 2 × 4 W SE power amplifier
The TDA1517ATW is an integrated class-AB output amplifier contained in a plastic heatsink thin shrink small outline package (HTSSOP20). The device is primarily developed for multimedia applications.
TDA1517ATW 主要特性：
• Requires very few external components
• Flexibility in use: mono Bridge-Tied Load (BTL) and stereo Single-Ended (SE); it should be noted that in stereo applications the outputs of both amplifiers are in opposite phase
• High output power
• Low offset voltage at output (important for BTL)
• Fixed gain
• Good ripple rejection
• Mode select switch (operating, mute and standby)
• AC and DC short-circuit safe to ground and VP
• Electrostatic discharge protection
• Thermal protection
• Reverse polarity safe
• Capable of handling high energy on outputs (VP = 0 V)
• No switch-on/switch-off plop
• Low thermal resistance.

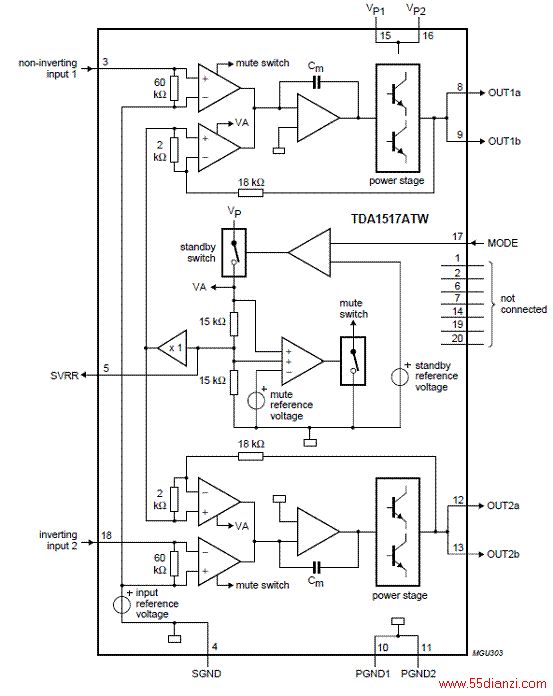

图1。TDA1517ATW 方框图

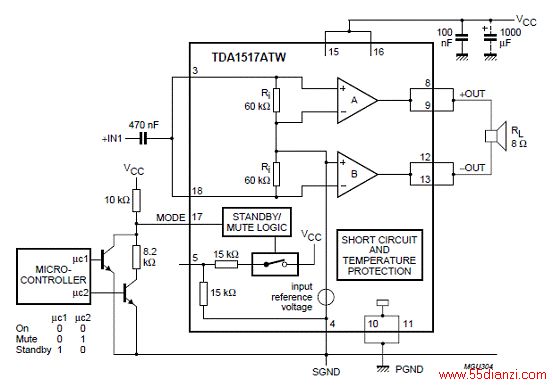

图2。TDA1517ATW BTL 应用方框图

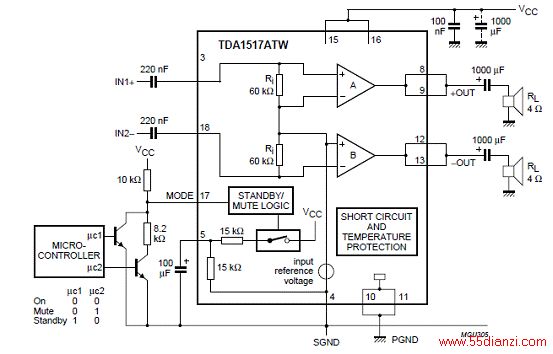

图3。TDA1517ATW SE 应用方框图
