简单的低速六针接口,鼠标和键盘接口一般都使用 PS/2 接口。二者虽然外观相同,定义也大致 相同,但是却不能混插。
PS/2 鼠标接口为6针母插,外观为:

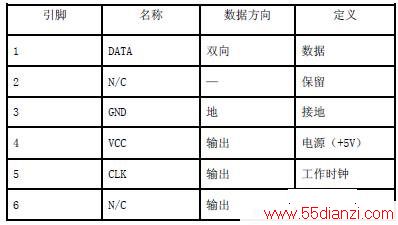

引脚定义
PIN
Name
Dir
Description
1
DATA
Key Data
2
n/c
-
Not connected
3
GND
Gnd
4
VCC
Power , +5 VDC
5
CLK
CLOCk
6
n/c
-
Not connected
