吉纳MFI Case A（0.4KW～1.5KW）系列空间

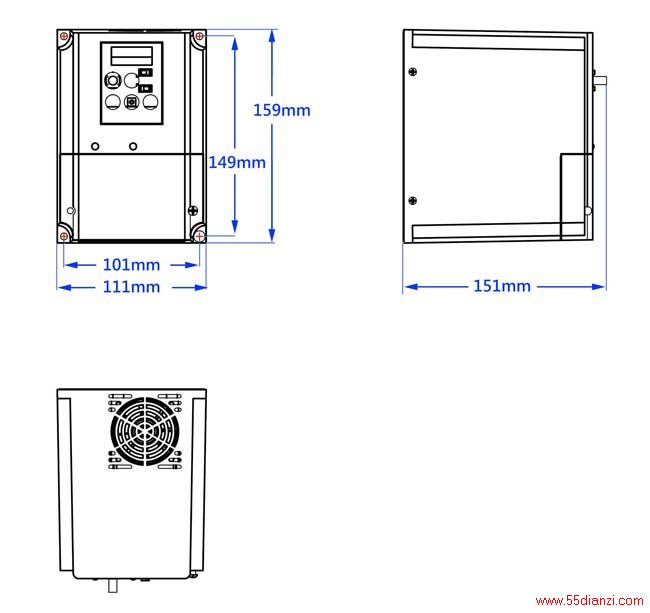

Case A (0.4KW~1.5KW)

Specification21040A21075A21150A23040A23075A23150A43040A43075A43150APower(KW)0.40.751.50.40.751.50.40.751.5Rating (HP)0.5120.5120.512Rating Current(A)3.1573.1571.83.45.5AC Input Voltage(V)1 Phase3 Phase3 Phase200(-15%) ~ 240(+10%)Vac346(-15%) ~ 480(+10%)VacInput Frequency48 ~ 62 HzAC Output Voltage0 to input voltage ( 3 Phase output)AC Output Frequency0 to 100 HzOverload150% , continuous 1 minuteControl SystemVVVF, space vector PWMFrequency Resolution0.10HZFrequency Linearity0.2% of maximum frequencyCommunicationsModbus , lonWorks , Metasys via RS-485 (option)Braking ModeDynamic braking (option) ( not applicable for Case 00 )Accel & Decel Time1 ~ 600 secondsAnalogue Input FunctionA1:Motor speed reference   A2:Accel / Decel timeDigital InputStop / Forward / Reverse controlLocal ControlStart ( FWD / REV), Stop , Reset & Set speed ( not applicable for Case 00 )Display Screen7 segment LED (Option)( not applicable for Case 00 )PWM Switching Frequency1KHz or 2KHz or 4KHz or 8KHz factory setProtectionI²t motor overload protection, Overvoltage, Under Voltage,Short Circuit, Over TemperatureCommunication PortRS-485Operating Temperature0 ~ 40^oC , up to 50^oC with deratingRelative Humidity90% RH , non-condensingDimension (L*W*D)159 * 111 * 155 (mm)
