Case B (2.2KW~5.5KW)
Specification21220B23220B23370B43220B43370B43550BPower(KW)2.22.2
3.7
2.23.75.5Rating (HP)33
5
357.5Rating Current(A)1010
16
6913AC Input Voltage(V)1 Phase
3 Phase
3 Phase
200(-15%) ~240(+10%) Vac346(-15%) ~ 480(+10%)Vac

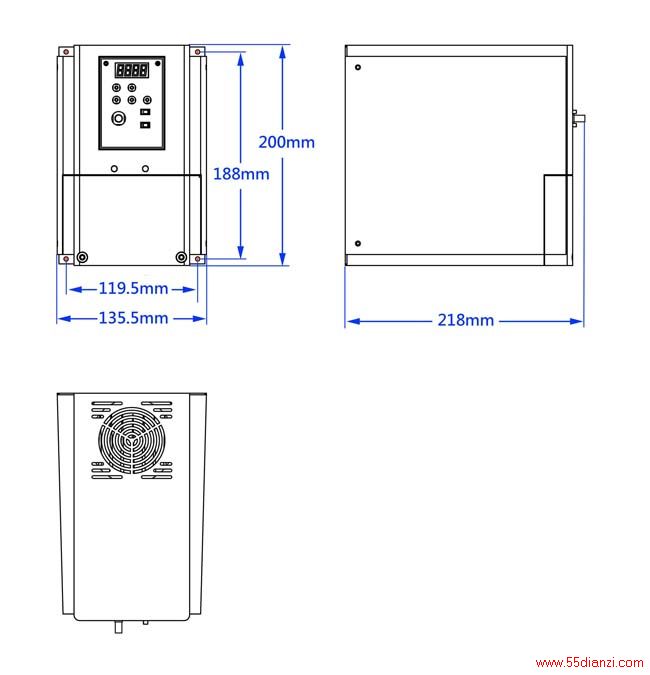

Input Frequency 48 ~ 62 HzAC Output Voltage 0 to input voltage ( 3 Phase output)AC Output Frequency 0 to 100 HzOverload 150% , continuous 1 minuteControl System VVVF, space vector PWMFrequency Resolution 0.10HZFrequency Linearity 0.2% of maximum frequencyCommunications Modbus , lonWorks , Metasys via RS-485 (option)Braking Mode Dynamic braking (option) ( not applicable for Case 00 )Accel & Decel Time 1 ~ 600 secondsAnalogue Input Function A1:Motor speed reference A2:Accel / Decel timeDigital Input Stop / Forward / Reverse controlLocal Control Start ( FWD / REV), Stop , Reset & Set speed ( not applicable for Case 00 )Display Screen 7 segment LED (Option)( not applicable for Case 00 )PWM Switching Frequency 1KHz or 2KHz or 4KHz or 8KHz factory setProtection I2t motor overload protection, Overvoltage, Under Voltage,Short Circuit, Over TemperatureCommunication Port RS-485Operating Temperature 0 ~ 40oC , up to 50oC with deratingRelative Humidity 90% RH , non-condensingDimension (L*W*D) 220 * 135 * 220 (mm)
