Atheros 公司的AR6101X 802.11a/g 单片解决方案是基于Atheros ROCm无线IP平台的首个Voice-Over-Wi-Fi设计。它在单片上集成了多种功能：计算，DSP，存储器，功率管理，键区，音频和显示接口以及混合信号和RF。AR6101X有最高的集成度，和同类方案相比，总元件数降低约50%。本文介绍了AR6101X的主要性能，方框图和主要技术指标以及AR6101X參考设计 HS22的主要性能。
The Atheros AR6101X 802.11a/g single-chip solution is the first Voice-Over-Wi-Fi design in Atheros’ Radio-on-Chip for Mobile (ROCm) wireless IP platform. With this latest solution, Atheros is building on its history of innovation and success in developing custom-built, low-cost mobile communications products. The Atheros AR6101 family of single-chip solutions integrates multiple complex functions onto a single chip: computing, DSP, memory, power management, keypad, audio and display interfaces, in addition to mixed-signal and RF.
图1. AR6101X外形图
The Atheros ROCm wireless IP platform offers a complete solution, including the user interface, in an energy and memory-efficient package. With the highest level of systems integration, the AR6101X total component count is reduced by approximately 50 percent versus competitive designs, dramatically lowering the total bill-of-materials.

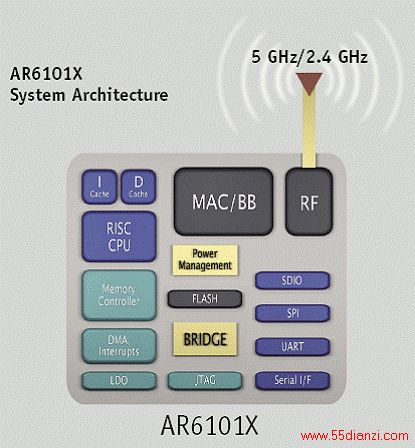

图2. AR6101X方框图
AR6101X 芯片主要特性：
Single-chip VoIP handset solution
All-CMOS single-chip design for IEEE 802.11a/b/g compatible WLANs
Data rates of 6-54 Mbps for 802.11g, 802.11a and 1-11 Mbps for 802.11b
150 MHz MIPS R4KEm CPU
Integrated 802.11a/b/g MAC/baseband processor and radio
Ultra low power and energy profile
Advanced QoS, security features
- 11e WMM QoS
- 11i, WPA, WPA2, CCXv4
Advanced energy management for VoIP
WMM-APSD
High integration level for compact and low-cost designs
Multiple expansion interfaces (memory, serial, I²S)
图3. AR6101X參考设计外形图
AR6101X 參考设计- HS22主要特性：
Phone applications (log, address book, calendar, configuration
profiles, voice memo, calculator)
VoIP engine (G.711 and G.729 compression, AEC, jitter buffer)
SIP or XMPP signaling
802.11b/g WLAN driver with 802.11e, 802.11i support
Lightweight IP (LWIP) stack
Wi-Fi Protected Setup™ support
Atheros’ wireless IP platform offers a streamlined voice capability. With this implementation, consumers will be empowered to make free or low-cost calls using any available WLAN. The scalable AR6101 platform supports Session Initiation Protocol (SIP) and Extensible Messaging and Presence Protocol (XMPP) for Internet conferencing, telephony, presence
and events notification, and instant messaging. XMPP is an open-source, XML-based protocol that has become the industry standard for leading instant messaging platforms and presence technology used by millions of people worldwide.

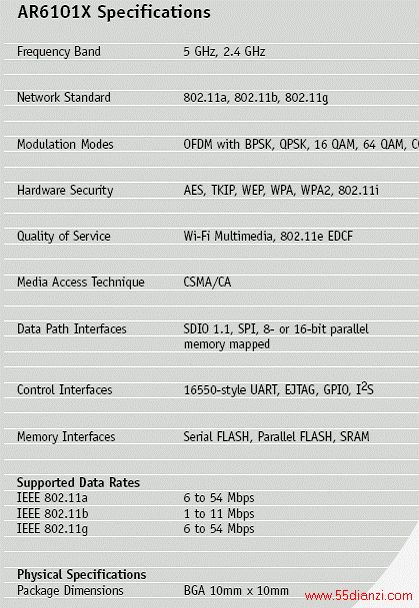

下表为AR6101X的主要指标：
