TI公司的CC2480是高性价比的低功耗Z-Accel ZigBee处理器，能以最低的开发成本提供全部的ZigBee功能。通过SPI/UART接口， CC2480可以和TI的低功耗处理器MSP430一起使用，可广泛应用在ZigBee系统，家庭或建筑物自动化，工业控制和监视，低功耗无线网络，机顶盒以及自动读表等。本文介绍了CC2480的主要性能，方框图以及无线电模块方框图，典型应用电路图和所用的外接元件，CC2480目标板及其电路图。
The CC2480 (formerly known as CCZACC06) is a cost-effective, low power, Z-Accel ZigBee Processor that provides full ZigBee functionality with a minimal development effort.
Z-Accel is a solution where TI’s ZigBee stack, Z-Stack, runs on a ZigBee Processor and the application runs on an external microcontroller. The CC2480 handles all the timing critical and processing intensive ZigBee protocol tasks, and leaves the resources of the application microcontroller free to handle the application.
Z-Accel makes it easy to add ZigBee to new or existing products at the same time as it
provides great flexibility in choice of microcontroller. CC2480 interfaces any microcontroller through an SPI or UART interface. There is no need to learn a new microcontroller or new tools.

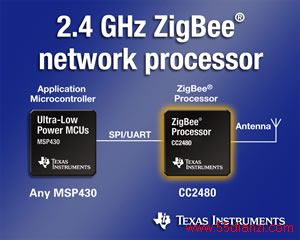

CC2480 can for example be combined with an MSP430.
CC2480 supports TI’s SimpleAPI. SimpleAPI has only 10 API calls to learn, which drastically simplifies the development of ZigBee applications.
主要特性：
Simple integration of ZigBee into any design
Running the mature and stable ZigBee 2006 compliant TI Z-Stack
SPI or UART interface to any microcontroller running the application
Simple API and full ZigBee API supported
Can implement any type of ZigBee device:Coordinator, Router or End Device
• Automatically enters low power mode (<0.5 uA) in idle periods when configured as End
Device
• Radio
Fully integrated and robust IEEE 802.15.4-compliant 2.4 GHz DSSS RF transceiver
Excellent receiver sensitivity and best in class robustness to interferers
Power Supply
Wide supply voltage range (2.0V – 3.6V)
Low current consumption (RX: 27 mA, TX: 27 mA) and fast transition times.
External System
Very few external components
RoHS compliant 7x7mm QLP48 package
Peripherals and Supporting Functions
Port expander with 4 general I/O pins, two with increased sink/source capability
Battery monitor and temperature sensor
7-12 bits ADC with two channels
Robust power-on-reset and brownout- reset circuitry
Tools and Development
Packet sniffer PC software
Reference designs
应用：
ZigBee™ systems
Home/Building automation
Industrial control and monitoring
Low power wireless sensor networks
Set-top boxes and remote controls
Automated Meter Reading

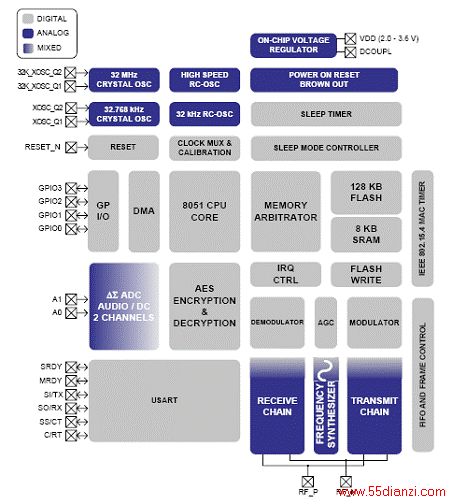

图1.CC2480 框图

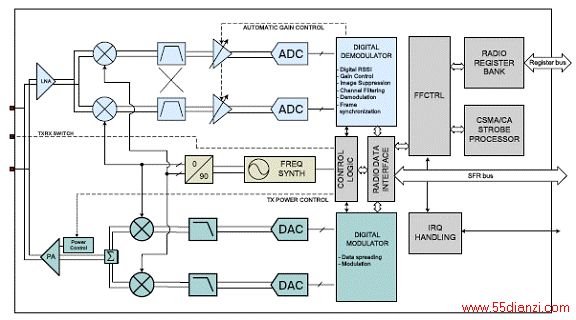

图2.CC2480 无线电模块

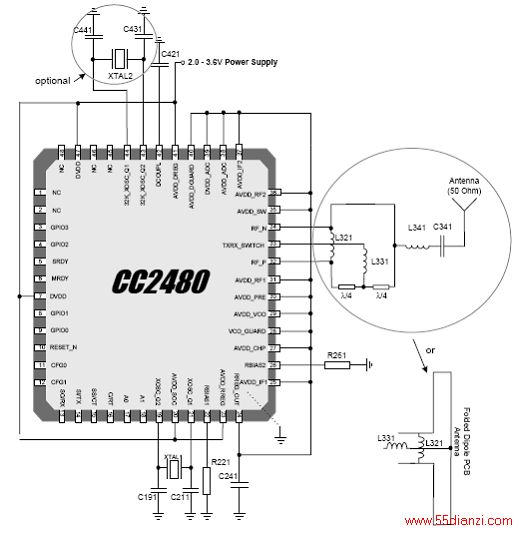

图3. CC2480应用电路

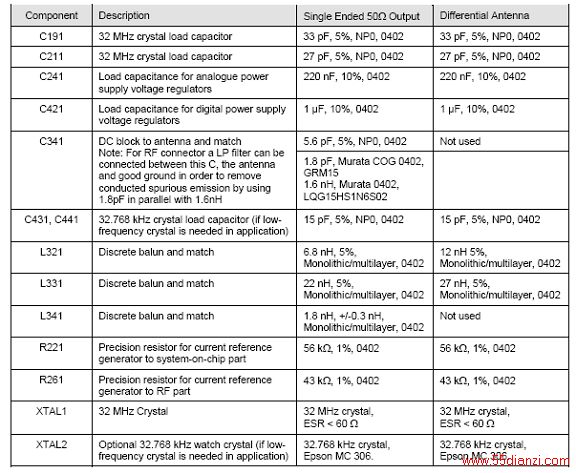

上表为应用电路外界元件（不包括电源去耦电容）

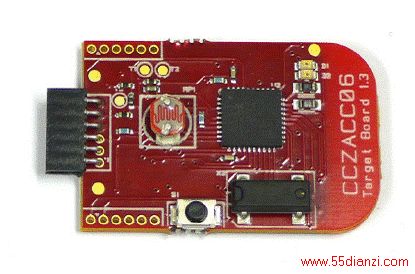

图4.CC2480目标板外形图
The CC2480 target board demonstrates Z-Accel by connecting a MSP430F2274 to our CC2480 Network Processor over SPI. The CC2480 target board is a reference design for CC2480 and demonstrates the use of Z-Accel designed to minimize board size
utilizing a chip antenna. The target board includes two LEDs, one Red and one Green, a push button, and 5 GPIO lines exposed for expanding the I/O interface. The MSP430F2274 GPIO pins available on the target board include P2.2, P2.3, P2.4, P4.4, and P4.5. None of the GPIO pins for the CC2480 are available on the target board.

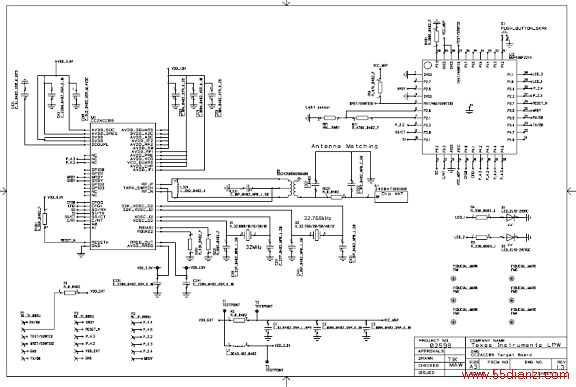

图5. CC2480目标板电路图
