You also have the option to use a stand alone transceiver and MCU alternative to provide additional design flexibility. For example, the block diagram below is Freescale’s 13192 sensor application reference design for sensing, monitoring and control subsystems. Completed boards based on this design are included in our 13192DSK-A0E (developer’s starter kit) and 13192EVK-SFTE (evaluation kit) development kits.
Supporting files for the above reference designs are available via web download. The download folder includes schematics, bill of materials, gerber files and other necessary documentation for complete reference design implementation.
Freescale’s Wireless Networking Solutions for Sensing, Monitoring and Control Applications
We offers an exceptional set of solutions for the digital engineer who wants to establish a new paradigm in end products. The broad portfolio meets the design requirements noted above that are essential to low cost, wireless networking implementations.
Sample products include:
RF modem or transceiver solutions (Simple MAC, 802.15.4 MAC and ZigBee), which can be used with a variety of MCUs (MC1319x and MC1320x transceiver families are used with the HCS08 and ColdFire MCU families)
Integrated transceiver solutions (Simple MAC, 802.15.4 MAC and ZigBee) with MCU system in package (SiP) solutions (MC1321x SiP family)
Analog components
Sensor components
For easy-to-use implementations of ZigBee and other low-cost, low-power wireless networks, Freescale is your resource for reference designs, application notes, hardware development tools and software design tools. For more detailed product information visit us at www.freescale.com/zigbee.
MC13211/212/213 ZigBee™- Compliant Platform -2.4 GHz Low Power Transceiver
for the IEEE® 802.15.4 Standard plus Microcontroller
The MC1321x family is Freescale’s second-generation ZigBee platform which incorporates a low power 2.4 GHz radio frequency transceiver and an 8-bit
microcontroller into a single 9x9x1 mm 71-pin LGA package. The MC1321x solution can be used for wireless applications from simple proprietary point-to-point connectivity to a complete ZigBee mesh network. The combination of the radio and a microcontroller in a small footprint package allows for a cost-effective solution.
The MC1321x contains an RF transceiver which is an 802.15.4 Standard compliant radio that operates in the 2.4 GHz ISM frequency band. The transceiver includes a low noise amplifier, 1mW nominal output power, PA with internal voltage controlled oscillator (VCO), integrated transmit/receive switch, on-board power supply regulation, and full spread-spectrum encoding and decoding.
The MC1321x also contains a microcontroller based on the HCS08 Family of Microcontroller Units (MCU), specifically the HCS08 Version A, and can provide up to
60KB of flash memory and 4KB of RAM. The onboard MCU allows the communications stack and also the application to reside on the same system-in-package (SIP).
The MC1321x family is organized as follows:
The MC13211 has 16KB of flash and 1KB of RAM and is an ideal solution for low cost,
proprietary applications that require wireless point-to-point or star network connectivity. The MC13211 combined with the Freescale Simple MAC (SMAC) provides the foundation for proprietary applications by supplying the necessary source code and application examples to get users started on implementing wireless connectivity.
The MC13212 contains 32K of flash and 2KB of RAM and is intended for use with the Freescale fully compliant 802.15.4 MAC. Custom networks based on the 802.15.4 Standard MAC can be implemented to fit user needs. The 802.15.4 Standard supports star, mesh and cluster tree topologies as well as beaconed networks.
The MC13213 contains 60K of flash and 4KB of RAM and is also intended for use with the Freescale fully compliant 802.15.4 MAC where larger memory is required. In addition, this device can support ZigBee 2006 applications that use Freescale’s BeeStack.
Applications include, but are not limited to, the following:
Residential and commercial automation
Lighting control
Security
Access control
Heating, ventilation, air-conditioning (HVAC)
Automated meter reading (AMR)
Industrial Control
Asset tracking and monitoring
Homeland security
Process management
Environmental monitoring and control
HVAC
Automated meter reading
Health Care
Patient monitoring
Fitness monitoring
Consumer
Human interface devices (keyboard, mice, etc.)
Remote control
Wireless toys
图1.MC1321x 系统级方框图

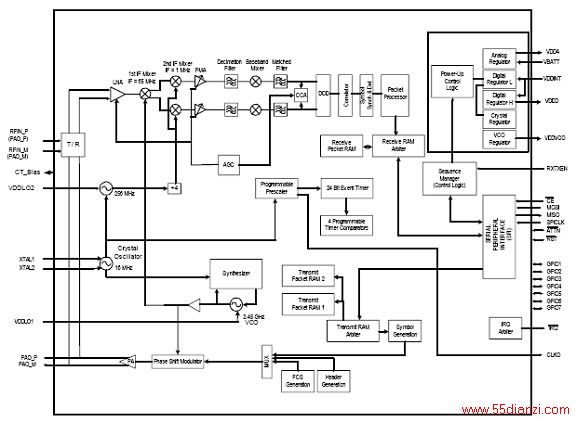

图2.802.15.4 标准调制解调器方框图

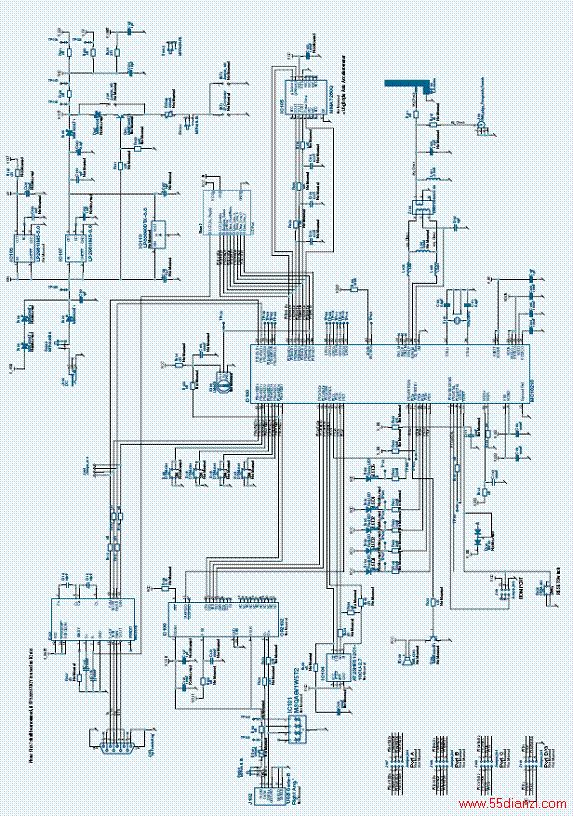

图3.MC13213 SED参考设计电路图
