Analog VGA to DVI Adaptor
主要特性:
Xilinx Devices
XC3SD3400A-4FGG676C
Carrier Board
Spartan-3A DSP 3400A Development Platform
FMC-Video Daughter Card: (FMC-Video)
DVI Input
Single Channel In and Out Composite
S-Video In and Out
Two Independent Camera Interfaces
CMOS Image Sensor Camera
742 x 480 x 60 Hz RGB progressive Scan
Micron MT9V022 CMOS color image sensor
目标应用:
市场: Medical, Automotive, Consumer, Surveillance, Machine Vision, Broadcast
应用: DSP, Digital Video, High Speed Design, Image Processing, Digital Camera, Digital Video Recorder, Multimedia Systems

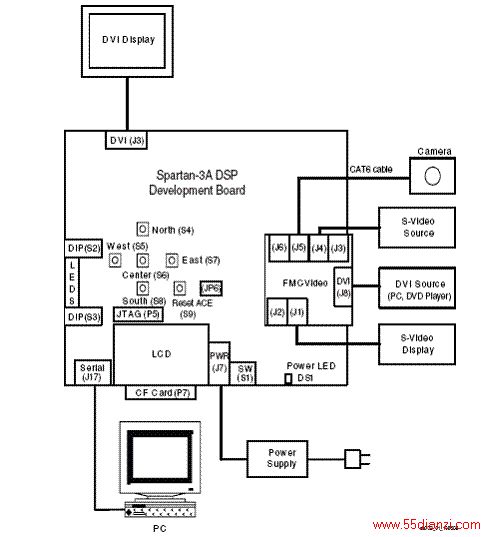

图1.XtremeDSP视频入门板物理连接框图

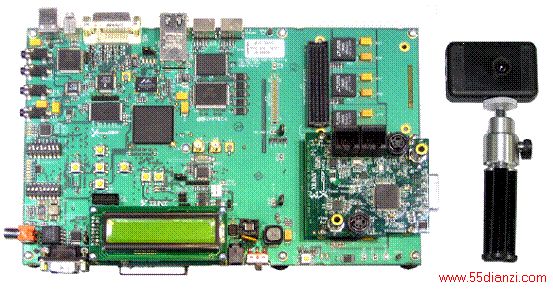

图2.Spartan-3A DSP FPGA 3400A 开发平台,FMC-视频和照相模块外形图

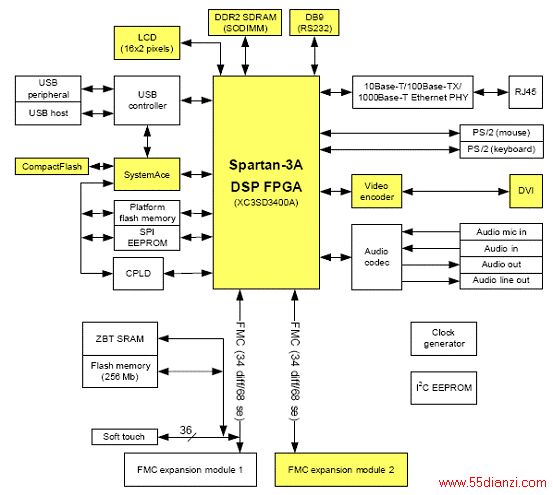

图3.Spartan-3A DSP 3400A 开发平台方框图

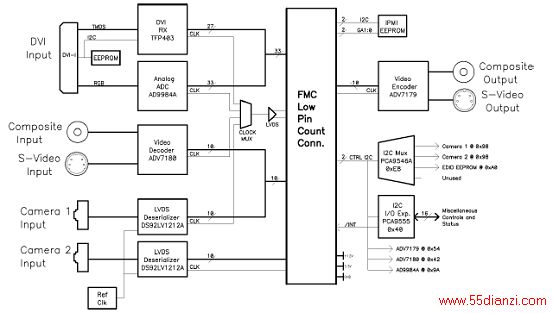

图4.FMC-视频方框图

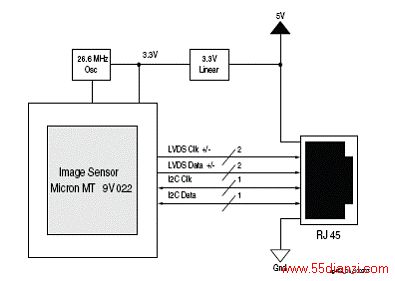

图5.VGA 照相模块方框图
