Point-of-sale and courier systems
Security and building control systems

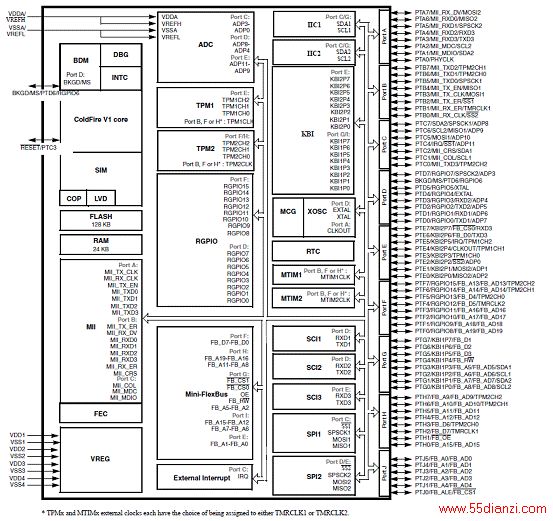

图1.MCF51CN128方框图
RDMCF51CN128: Serial to Ethernet Bridge
The most common use of this reference design will be to integrate old MCU projects to the internet. The connection between these legacy microcontrollers will be by SCI and SPI. The MCU used is the MCF51CN128. As a second goal, customers don’t need to know about ETH, or in certain cases, a little knowledge will be required, though enough information is provided for customer education in Lasko Ethernet TCP/IP implementation.

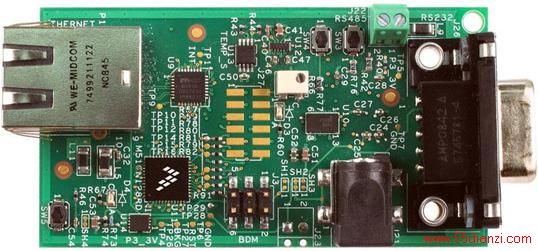

图2.MCF51CN128以太网连接参考设计外形图
以太网连接参考设计主要特性:
The following list shows some of the reference design features:
– Hardware:
Ethernet Minimal System in 1.15’’x1.55’’
RTOS+TCP/IP highly coupled and customized for a very small memory footprint
Webserver supporting HTTP 2.0
File System (FAT16) thru uSD socket
Bridges to UART, SPI and IIC to Ethernet easily
Serial Header that allows to use signals as needed
Sensors (SPI and I2C) already on board
– Sofware:
lwIP 1.3.0 + FreeRTOS v5.3.0
Layered Software for easy migration and upgrade of SW drivers
The following reference design implements:
Web Server
Email Client
FTP Server
SD card driver
FAT16 file system
Serial Bridge

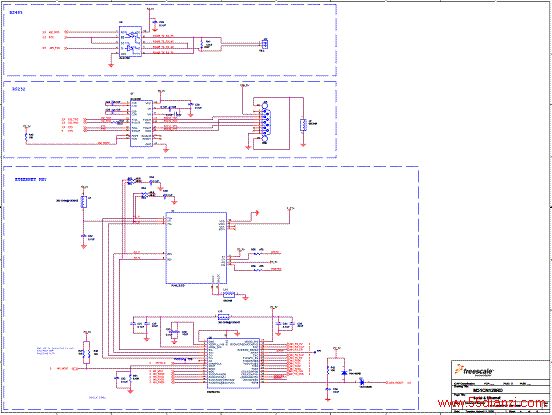

图3.以太网连接参考设计电路图(1)

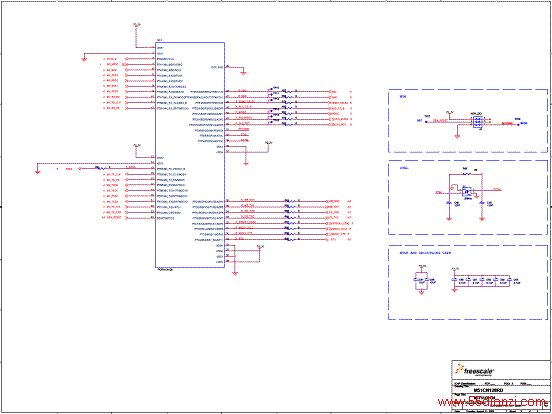

图4.以太网连接参考设计电路图(2)

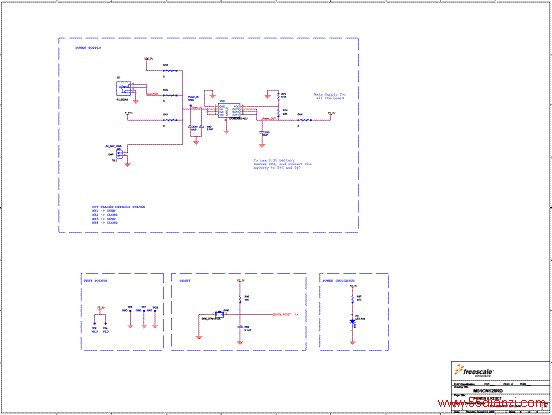

图5.以太网连接参考设计电路图(3)

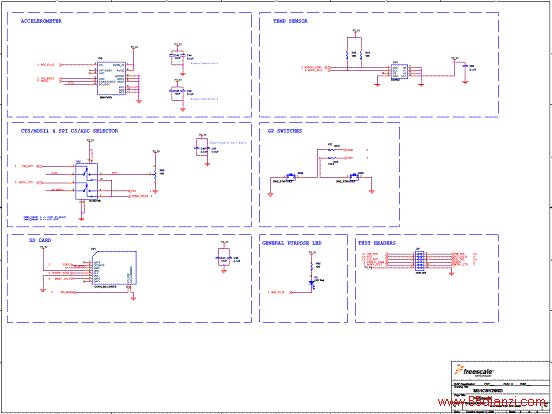

图6.以太网连接参考设计电路图(4)
