三菱PLC梯形图与语句表的转换程序例子

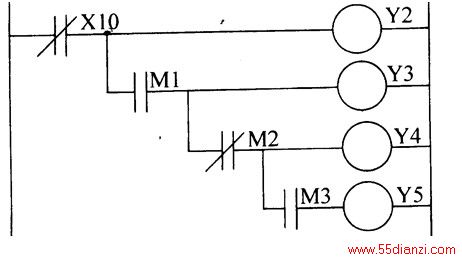

   上述PLC梯形图对应的语句表为：

                步序         助记符        操作数

                  0            LDI           X10

                  1            OUT           Y2

                  2            AND           M1

                  3            OUT           Y3

                  4            ANI           M2

                  5            OUT           Y4

                  6            AND           M3

                  7            OUT           Y5
