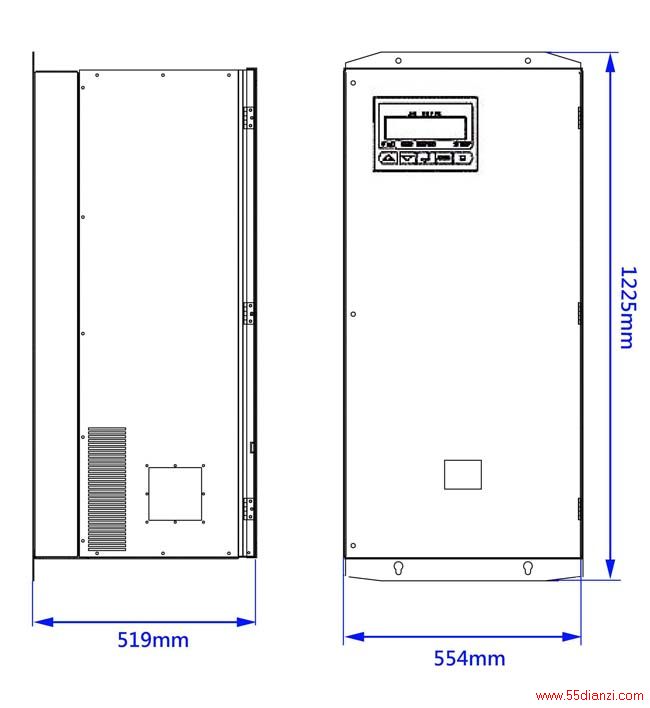

MSC3-CHD (90KW~250KW)
Model NameR175R220R260R315R360R390R430R490Rating Current(A)175220260315360390430490Model NameH175H220H260H315H360H390H430 Rating Current(A)175220260315360390430 Input Voltage(V)380Vac(-15%) to 480Vac(+10%), 3 Phase, 400 ~ 680VdcInput Frequency48 ~ 62 HzOutput Voltage0 to input voltageOutput Frequency0 to 200 HzOutput Power (KW)90110132160185200220 Overload110% , continuous 1 minuteControl SystemSensorless flux Vector , Sine coded PWMFrequency Resolution0.1HzFrequency Linearity0.2% of maximum frequencyCommunicationsModbus , lonWorks , Metasys via RS-485 (option)Braking ModeDynamic braking (option) , Control stopAccel & Decel AdjustmentIndependent Accel & Decel adjustment with S-curveAnalogue Input/Output0~5V , 0~10V ; 0~20mA , 4~20mADigital Input5 Digital input with programmable control functionalityRelay Output2 relays type NO / NC with programmable functionalityLocal ControlComprehensive local control include Start (FWD/REV) , Stop , Reset , and Set SpeedDisplay Screen16 character*2 line alphanumeric , Backlight and auto contrast .Run VariablesOutput frequency(Hz) , Motor Speed(RPM) , % Load , Output current(A) , Power(KW) , Output Voltage(V) , Temperature , I2t used process variable scaleProtectionCurrent limit , Over voltage , Under voltage , Short circuit , Earth fault , Phase monitoring , Motor electronic thermal overload , Over temperatureSafety StandardUL508C , AS3100Enclosure RatingIP30 & IP54Operating Temperature0 ~ 40oC , up to 50oC with deratingRelative Humidity90% RH , non-condensingService Conditions1000M or less no derating : not subject to direct sunlight or corrosive/explosiveSize for IP30 (H*W*D*)1225*555*520(mm)Size for IP54 (H*W*D*)--------------------
