Nuvoton (新唐科技)提供掌上型多媒体播放器 (PMP) 最佳之解决方案：

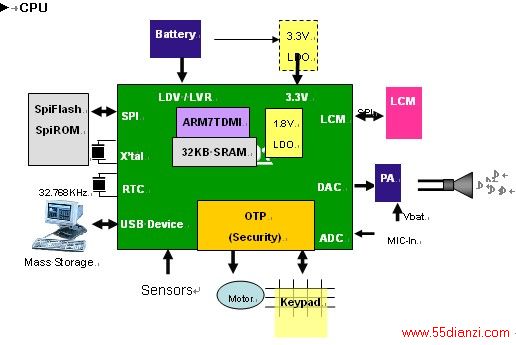

新唐科技推出NUC501 ARM7 Low Power产品：
新唐科技前身为华邦电子旗下之逻辑产品事业群，其辖下之系统芯片产品中心多年来致力于32位ARM SoC平台开发，目的在协助客户取得更齐全、更高功能、更低单价的32位平台，从不到一美元的超精简设计，到超高整合度的多功能平台，新唐科技已成功地完成13颗可用于各种应用的SoC芯片，成为华人地区最大以ARM为核心的 SoC供货商。与新唐科技合作除了可以取得最高性价比的产品外，该团队坚强的研发与技术支持能力，也能成为客户在实际应用时最有力的后盾。
NUC501的推出，将针对较复杂的应用而设计，从计划到量产仅耗费了6个月时间。NUC501不同于一般微控制器带有嵌入式内存，新唐科技采用外接SPI Flash，而这样的设计可扩充内存，有别于之前业者宣称可达1美元价格的32位微控制器，内存仅8KB，读写容量太小，但NUC501采用SPI Flash既可达到扩充内存目的且花费成本也低，而这也是新唐科技近期重要的技术展现，客户用于PND GPS数据纪录，透过高容量的SPI Flash进行储存，SPI Flash可当数据及程序代码储存，节省客户端零件成本上的花费。
▪ ARM7TDMI @ 81MHz
▪ 32KB high-speed SRAM
▪ Extensible XIP @ SpiMemory
► Technology & Package
▪ 0.18um CMOS, 2.8 ~ 3.3-volt single supply ,Power current
▪ RoHS-compliant package: LQFP-48 (NUC501AN), LQFP-64 (NUC501BN)
► Analog
▪ 8-ch 10-bit ADC
▪ 16-bit Sigma-Delta mono DAC
▪ LVD / LVR / MIC
▪ 1.8V LDO for VDD core
► Peripherals
▪ SPI x 2, I2Cx1, UART x 2 (TXD, RXD, CTS, RTS)
▪ 24-bit WDT, 4-ch PWM output
▪ Capture & Compare PWM input x 8
▪ Up to 37 programmable I/O (LQFP-64)
▪ USB2.0 FS Device
▪ Data write-back & content download @ SpiFlash
▪ Embedded RTC with independent power
▪ Direct sink LED (16mA) x 8
▪ Crypto engine with OTP key for code security
► Operating current (All IP enable):
▪ 24MHz: 10mA(1.8V)/2.3mA(3.3V)
▪ 48MHz: 18mA(1.8V)/2.3mA(3.3V)
▪ 72MHz: 23mA(1.8V)/2.3mA(3.3V)
▪ 81MHz: 26mA(1.8V)/2.3mA(3.3V)
► Power down current:
▪ VDD33: around 0.5uA
▪ Core 1.8V: under 50uA

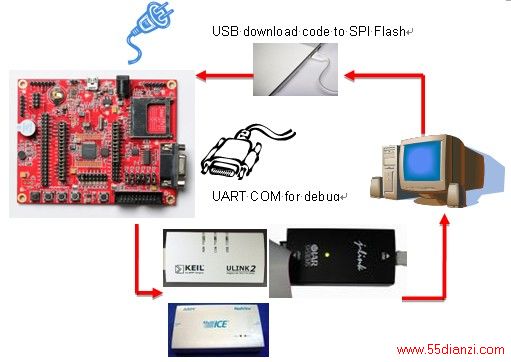

Development Environment：
Quartech 捷德电子提供Crystal 32.768Hz之计时解决方案：
Samsung推出MLCC、钽电、Inductor之最佳解决方案：
1、MLCC：0805、0603、0402、0201、01005全系列MLCC。
2、Tantalum CAP：PCS、SCE、SCL、SCN、SCS等全系列钽电。
3、Chip Inductor：0805、0603、0402等全系列Chip Inductor
SiTime 推出 Oscillator全系列SMD产品之最佳解决方案：
不是 crystal or capacitors required的Oscillator。SiTime Oscillator全系列产品是MEMS技术设计，正在脱颖而出取代传统的石英晶体设计，除了创新MEMS谐振器技术之外，MEMS振荡器内部设计亦不断提升，利用MEMS谐振器达到输出频率的变化效能，采用Sigma-Delta Fran-N PLL锁相环作为倍频电路，也成为技术设计要点。
产品有：2.5x2.0mm、3.2x2.5mm、5.0x3.2mm、7.0x5.0mm等SMD包装。
各系列产品：频率有从 1MHz ~ 100MHz、1MHz ~ 200MHz。
频率误差：±10 ppm、±15 ppm、±20 ppm、
±25 ppm、±50 ppm、±100 ppm
工作电压有：1.8V、2.5V、2.8V、3.3V
另外有频率：向上展频、向下展频、中心展频的系列产品。
各系列产品，详细信息请联络：凯悌产品线人员。

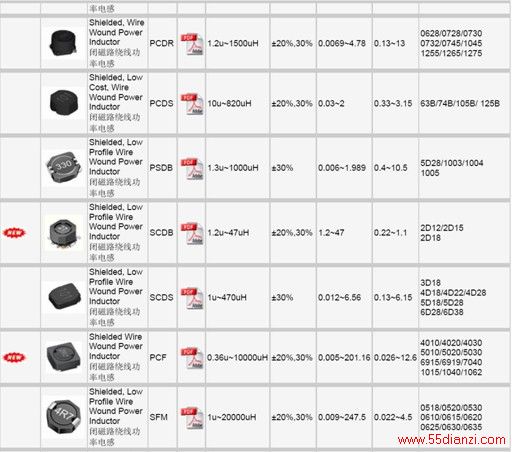

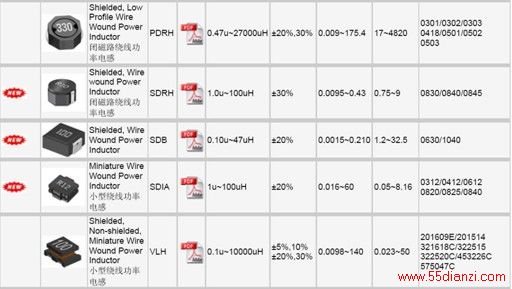

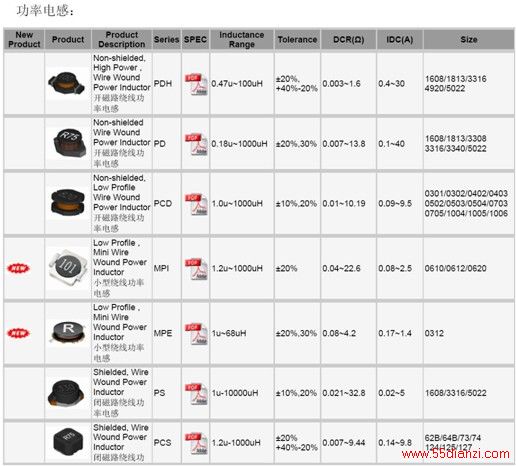

ViKing推出微奥姆及精密电阻、电感之最佳解决方案：
0805、0603、0402、0201全系列微奥姆
精密电阻 ( 5%、1%、0.1%、0.01% )。

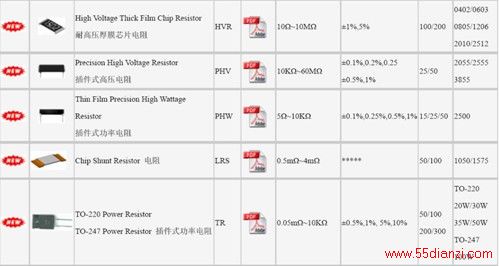

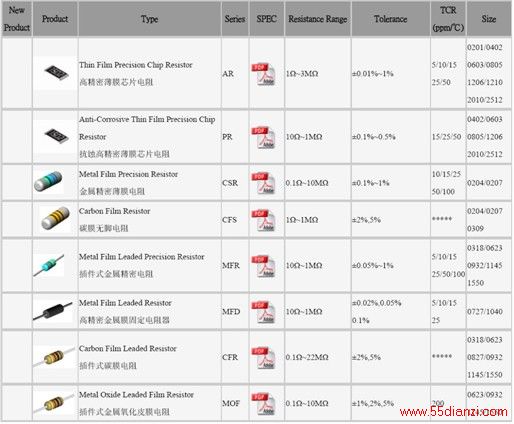

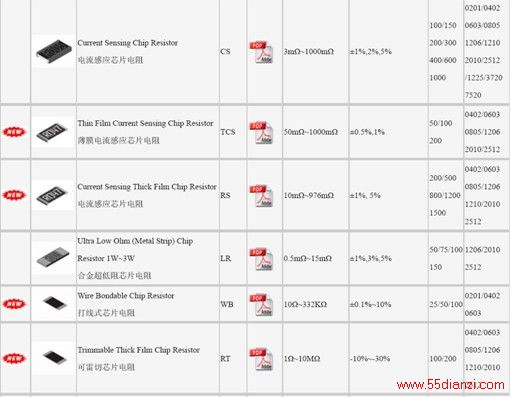

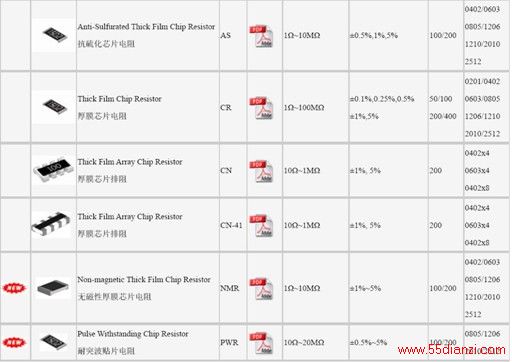

电阻系列：
Winbond (华邦电子)提供Memory最佳之解决方案：
Winbond Specialty DRAM Strategy
Focus on Non-PC Main Memory
_ Winbond runs “zero” PC main DRAM Biz with Winbond Branded products
_ Over 75% of W/W DRAM demand is from PC main memory
_ Long-term support with stable supply and the most advance technology
_ Complete Specialty DRAM Solution Provider
_ Density : 16~256M SDR, 64~256M DDR, 128M~1G DDR2
_ Speed : Up to 200MHz for SDR, 250MHz for DDR1, 533MHz for DDR2
_ I-temp Support with all 90nm SDR/DDR products
_ x16 / x32 ; 1.8V support for SDR/DDR
_ Support BGA (60/90/144 ball) Package
_ Support KGD business with RDL solution
_ (Many Successful Stories)
_ To Expand Market Share of Specialty DRAM aggressively
Winbond Flash Memory Strategy
Winbond is well POSTTTIONed for Serial Flash Market growth
Primary focus and market advantage is Serial Flash
Wide range of SpiFlash® Memories (1Mb to 128Mb)
Superior features, Industry’s highest performance
First to introduce Dual and Quad Serial Flash
Complimentary Parallel Flash Memories
Spansion compatible (16Mb to 32Mb)
Strong Manufacturing Resources
Competitive cost, new 90nm Technology
In-house test, Known Good Die (KGD) capability
Ample wafer capacity
SpiFlash® W25Q Quad-SPI Family
Next Generation Serial Flash
Introduced in Aug 2007
Worlds First Quad SPI Serial Flash
25Q16 and 25Q32 in 130nm technology
SPI, Dual-SPI and Quad-SPI
Uniform 4KB, 32KB & 64KB erase
Industry’s Highest Performance
80MHz clock, 320MHz equiv. with Quad-SPI (40MB/S)
>6X the performance of most Serial Flash,
Execute code from SPI (XIP) or Faster Boot-up (Code Shadow)
Security and other Features
Lock-down & OTP write protect, 64-bit ID# (special order)
Erase suspend/resume, Quad ProgrammingB
New SpiFlash® W25Q “B” Series
Winbond’s next generation SpiFlash family
W25Q16B and W25Q64B are first in a family of 1M to 128M-bit
Single, Dual and Quad SPI interface in one device
Advanced 90nm Winbond Technology and Features
First Serial Flash supplier with 90nm from 12” fab
Packaging: First 64M-bit to fit in low-cost 8-pin SO package
Performance: 104MHz Quad-SPI is industry highest
Programming: 100% faster (reduces customer test time and application updates)
