Hittite 公司的HMC815LC5是GaAs MMIC I/Q 21 - 27 GHz上变换器,小信号变换增益12dB,边带抑制+20dB,输出IP3为+27dBm,主要用于点对点和点对多点无线电,军用雷达,EW和ELINT,卫星通信和传感器.本文介绍HMC815LC5主要特性, 方框图和应用电路图以及评估板PCB布局图与材料列表.
HMC815LC5: GaAs MMIC I/Q UPCONVERTER 21 - 27 GHz
The HMC815LC5 is a compact GaAs MMIC I/Q upconverter in a leadless RoHS compliant SMT package. This device provides a small signal conversion gain of 12 dB with +20 dB of sideband rejection. The HMC815LC5 utilizes a driver amplifier preceded by an I/Q mixer where the LO is driven by an active x2 multiplier. IF1 and IF2 mixer inputs are provided and an external 90° hybrid is needed to select the required sideband. The I/Q mixer topology reduces the need for fi ltering of the unwanted sideband. The HMC815LC5 is a much smaller alternative to hybrid style single sideband upconverter assemblies and it eliminates the need for wire bonding by allowing the use of surface mount manufacturing techniques.
HMC815LC5主要特性:
High Conversion Gain: 12 dB
Sideband Rejection: 20 dB
2 LO to RF Isolation: 10 dB
Output IP3: +27 dBm
32 Lead 5x5mm SMT Package: 25mm2
HMC815LC5应用:
The HMC815LC5 is ideal for:
• Point-to-Point and Point-to-Multi-Point Radio
• Military Radar, EW & ELINT
• Satellite Communications
• Sensors

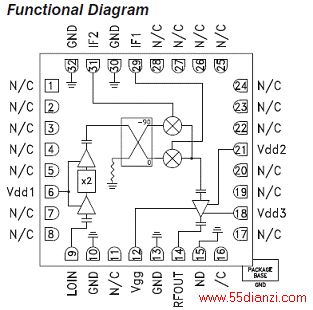

图1.HMC815LC5方框图
图2.HMC815LC5应用电路图

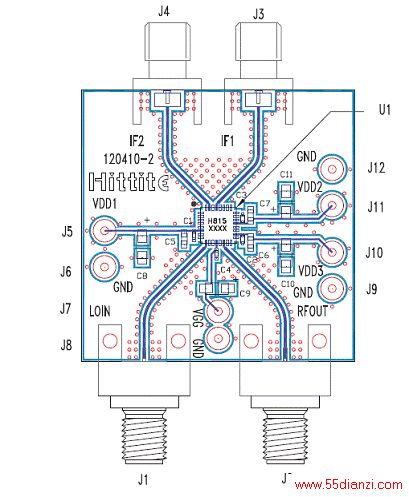

图3.HMC815LC5评估板PCB布局图
评估板 PCB 120412材料列表:
