Freesale MF51N以太网MU开发方案

Freesale MF51N以太网MU开发方案

点击数:7638 次   录入时间:03-04 11:56:05   整理:http://www.55dianzi.com   电子技术

TWR-MCF51CN MCU模块主要特性:

TWR-MCF51CN Microcontroller Module Features:

Freescale Tower System compliant

MCF51CN128 Microcontroller

Fast Ethernet Controller (FEC)

Mini-FlexBus External Bus Interface

10/100 baseT Ethernet with DMA

Integrated, Open-Source BDM

Small form factor (59mm x 90mm) standard with Freescale Tower System

TWR-SER Peripheral Module Features:

RS232 and RS485

Ethernet

CAN

USB supporting host, device and OTG modes

TWR-ELEV Features:

supports external communications interfaces

includes power regulation circuitry with standardized bus

four card-edge PCI Express connectors

two 80-pin connectors on the outside to support debugging or expansion to LCD module

开发板包括:

The TWR-MCF51CN-KIT development tool comes as a complete kit with the following:

TWR-MCF51CN - Ethernet microcontroller module that features the MCF51CN128 and has push buttons, LEDs, potentiometer and more

TWR-SER - Serial module that features Ethernet, USB, RS232/485 and CAN

TWR-ELEV-Two elevator boards that provide structural integrity, communications interfaces, power regulation circuitry with standardized bus

USB/Ethernet cables

An interactive DVD with lab tutorials, software, training and collateral

A printed guide on how to quickly get started using the development kit.

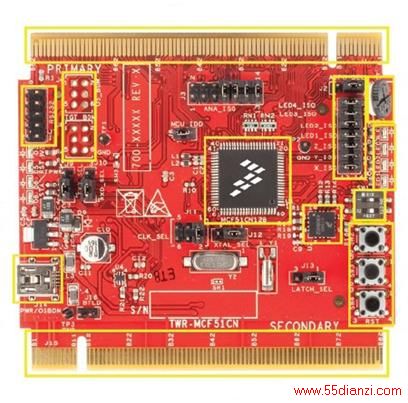

图2.TWR-MCF51CN开发板外形图

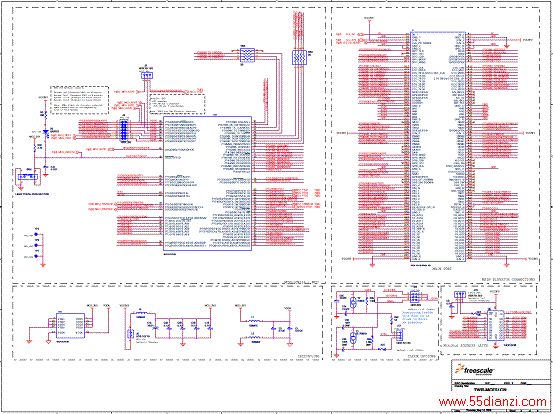

图3.TWR-MCF51CN开发板电路图(1)

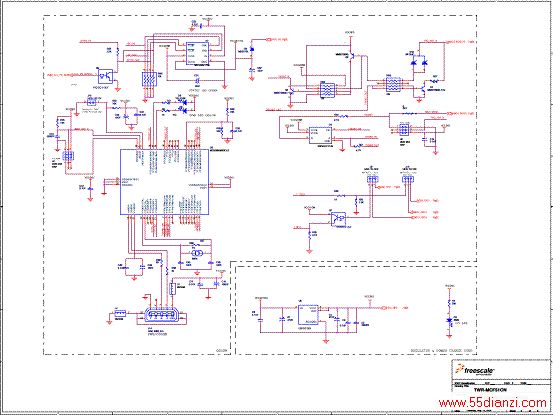

图4.TWR-MCF51CN开发板(2)

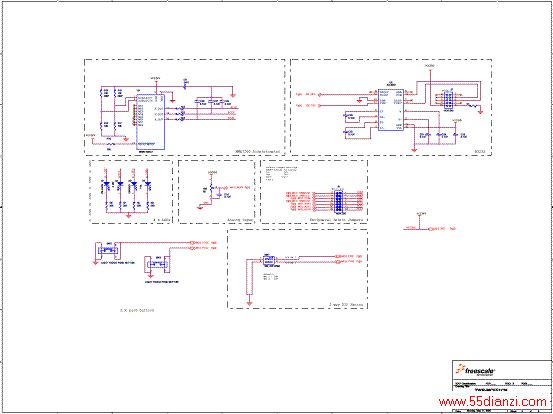

图5.TWR-MCF51CN开发板(3)

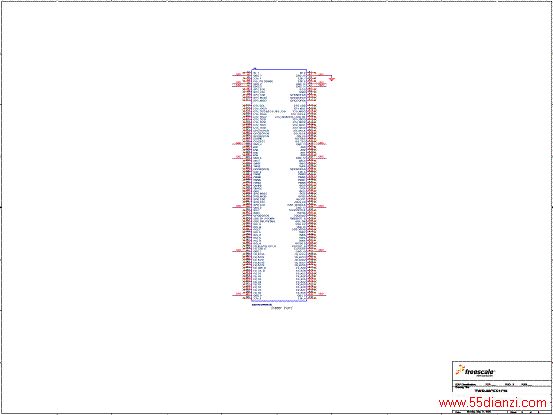

图6.TWR-MCF51CN开发板(4)
