Achieve higher image quality while reducing power and cost using Spartan-6 FPGAs withintegrated serial I/O capabilities.

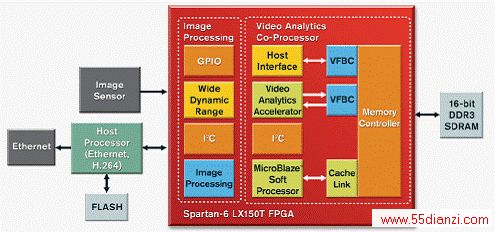

图3.Spartan-6 FPGA在视频监视系统应用框图
Surveillance Image Capture and Analytics Engine
Integrate sensor interfacing, video analytics, image enhancement and network interfacing in a single Spartan-6 LX150T FPGA.
The Spartan®-6 family provides leading system integration capabilities with the lowest total cost for high-volume applications. The thirteen-member family delivers expanded densities ranging from 3,400 to 148,000 logic cells, with half the power consumption of previous Spartan families and faster, more comprehensive connectivity.
Built on a mature 45 nm low-power copper process technology that delivers the optimal balance of cost, power, and performance, the Spartan®-6 family offers a new, more efficient, dual-register 6-input look-up table (LUT) logic and a rich selection of built-in system-level blocks. These include 18 Kb block RAMs, second generation DSP48A1 slices, SDRAM memory controllers, enhanced mixed-mode clock management blocks,SelectIO™ technology, power-optimized high-speed serial transceiver blocks, PCI Express™ compatible Endpoint blocks, advanced system-level power management modes, autodetect configuration options, and enhanced IP security with AES and Device DNA protection. These features provide a low-cost programmable alternative to custom ASIC products with unprecedented ease-of-use. Spartan®-6 FPGAs are the programmable silicon foundation for Targeted Design Platforms that deliver integrated software and hardware components to enable designers to focus on innovation as soon as their development cycle begins.
SP601评估套件
The SP601 Evaluation Kit is based on the XC6SLX16-2CSG324 Spartan-6 FPGA. This FPGA contains 14,579 logic cells, a rating that reflects the increased logic capacity offered by the new six-input LUT architecture.
SP601评估套件主要特性:
The SP601 designs demonstrate Spartan-6 FPGA features using the SP601 evaluation
board. These features include:
• DDR2 component
• SPI x4 Flash and headers
• Linear BPI Flash
• 10/100/1000 Ethernet PHY
• RS232 UART (USB Bridge)
• IIC
• 200 MHz differential clock, 27 MHz socketed oscillator, clock SMA connectors
• VITA 57.1 FMC-LPC connector
• LEDs
• DIP switch
• Pushbuttons
• 12-pin (8 I/O) header
• USB JTAG
• Onboard power

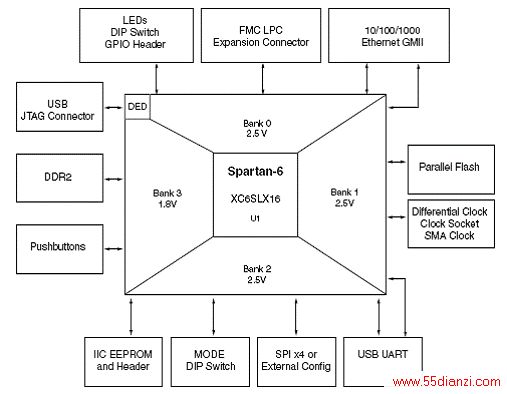

图4. SP601评估套件框图

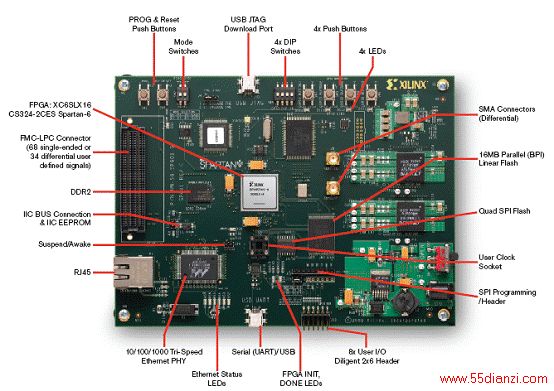

图5. SP601评估套件外形图

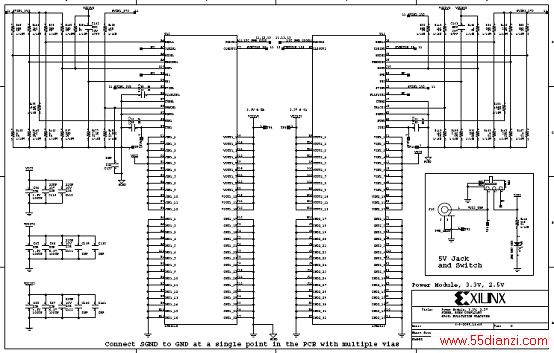

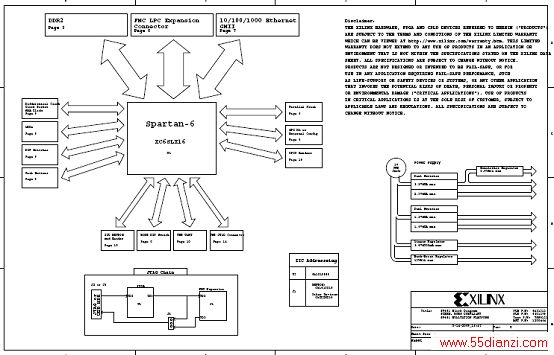

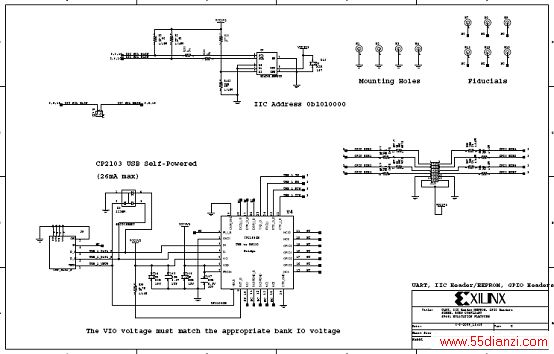

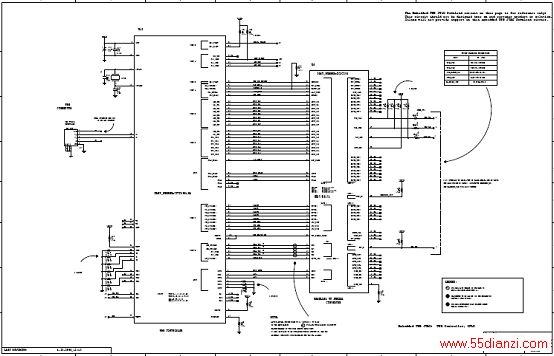

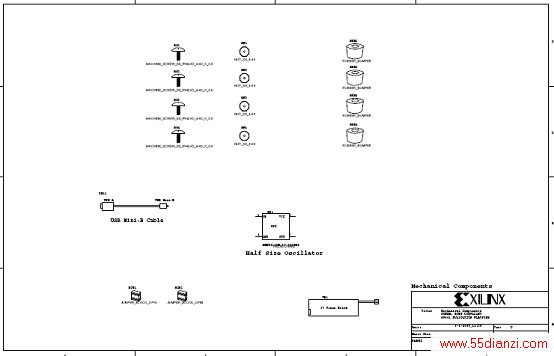

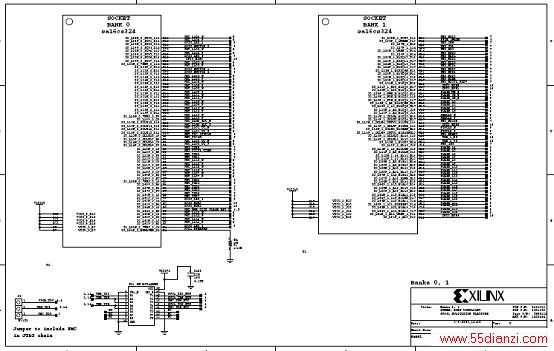

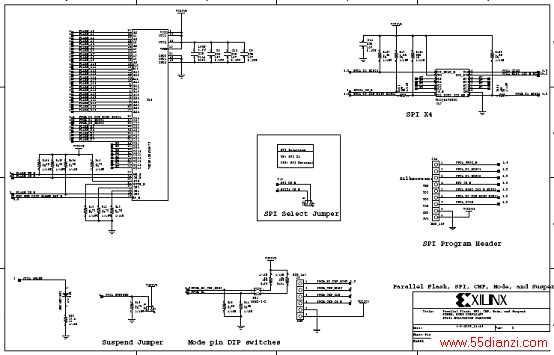

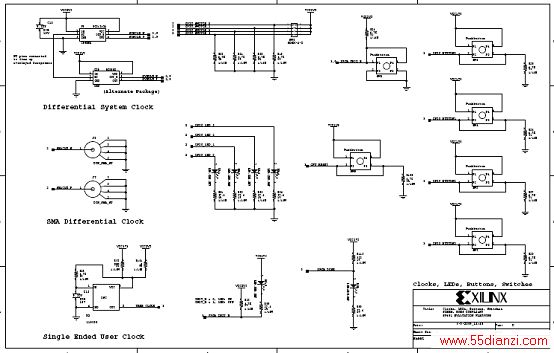

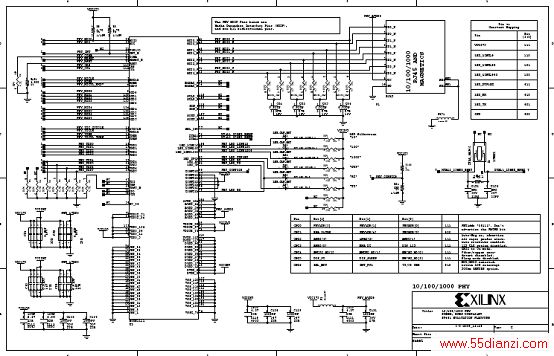

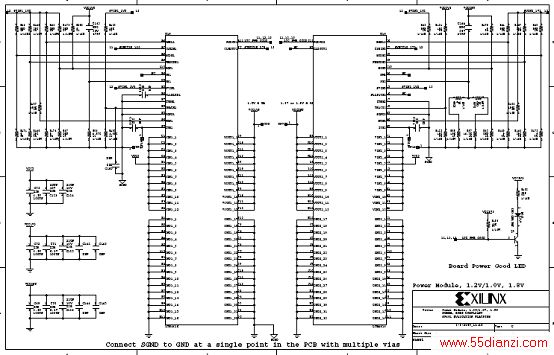

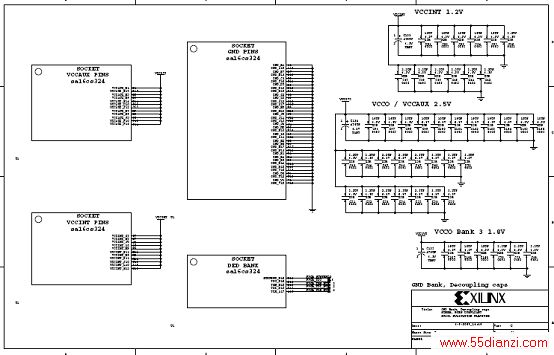

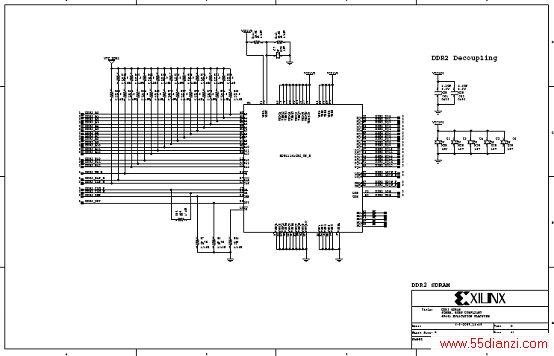

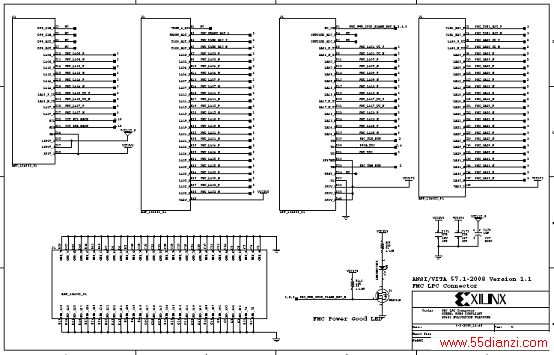

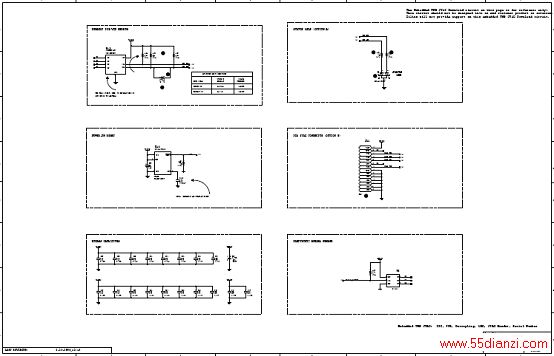

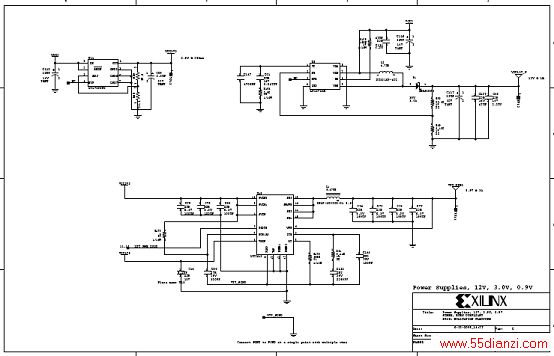

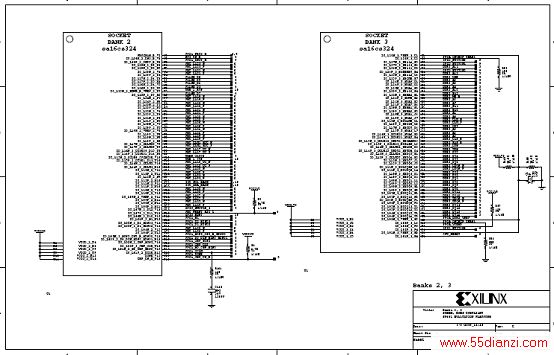

图6. SP601评估板电路图(1)
图7. SP601评估板电路图(2)
图8. SP601评估板电路图(3)
图9. SP601评估板电路图(4)
图10. SP601评估板电路图(5)
图11. SP601评估板电路图(6)
图12. SP601评估板电路图(7)
图13. SP601评估板电路图(8)
图14. SP601评估板电路图(9)
图15. SP601评估板电路图(10)
图16. SP601评估板电路图(11)
图17. SP601评估板电路图(12)
图18. SP601评估板电路图(13)
图19. SP601评估板电路图(14)
图20. SP601评估板电路图(15)
图21. SP601评估板电路图(16)
