USB Cable
2 Artaflex 2.4GHz Radios
9V Battery
CY3209-ExpressEVK Kit CD
Quick Start
Hardware DeSCRJPTion
The CY3209-ExpressEVK development kit allows one to put real-world applications together very quickly. This new kit demonstrates many aspects of PSoC with special emphasis on PSoC Express. The kit is physically divided into 4 parts, with each part associated with the CY8C21434, CY8C27643, CY8C24894 and CY8C29666 devices respectively. PSoCs can be I2C networked. The CY3209-ExpressEVK contains an enhanced version of the PSoC Express World Tour board (CY3121-Customer.) The kit includes software, hardware and example projects to help designers learn how to implement and evaluate the following functions:
CapSense
Wireless Communication
Drag and drop USB
LCD Control
Accelerometer/Tilt/Drop Sensing
Voltage Monitoring
Key Applications:
Some of the applications possible with this kit are demonstrated in the Users Manual for the kit, where the user is led step-by-step, through several projects, including:
Capacitive button sensing
Analog input and display of a remote display using I2C
Display of a dynamically changing real-time analog value on an LCD
Implement a PC interface via USB
Special-effects with LEDs
CY3209-ExpressEVK 评估板电路图

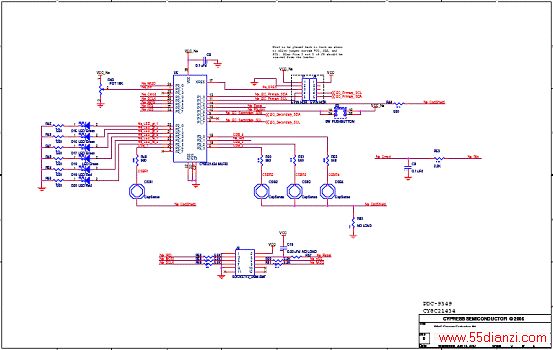

图4. CY3209-ExpressEVK 评估板电路图(1)

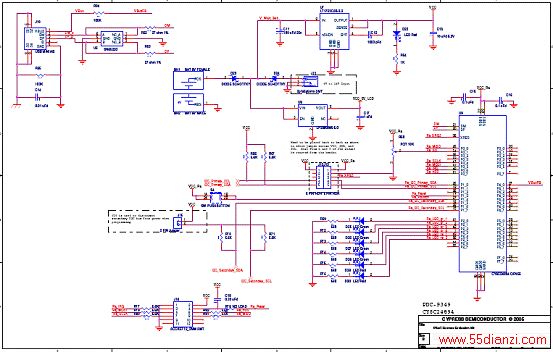

图5. CY3209-ExpressEVK 评估板电路图(2)

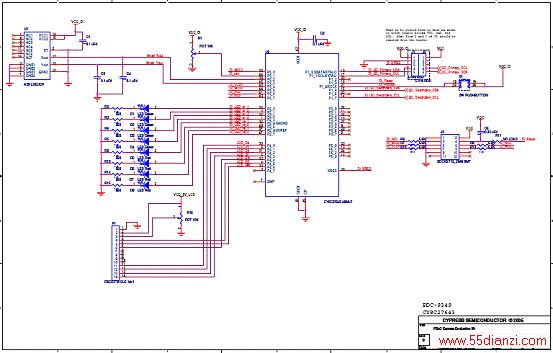

图6. CY3209-ExpressEVK 评估板电路图(3)

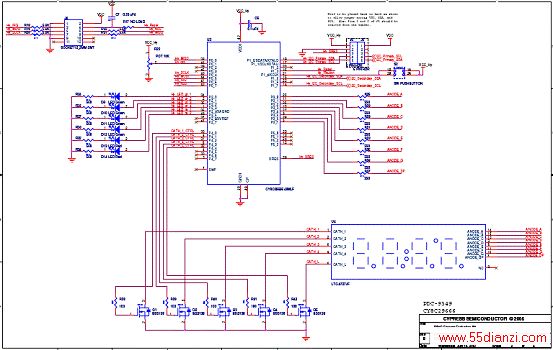

图7. CY3209-ExpressEVK 评估板电路图(4)
